Features：
1.Industrial Single Pass Productivity, Built for Modern Industrial Corrugated Packaging Production.
2. Max Feeding Width Is 2000mm, With Optional 900mm, 1200mm and 1500mm Printing Widths.
3.From Short Runs to Mass Production — Fully Digital Packaging Printing.
4.Industrial Digital Printing Engineered for Corrugated Packaging Factories.
5.Feeding Area, Pre-Print Area, Output Area 3 Camera Visual Monitoring.
6.Lower Labor Cost, Higher ROI, Up to 1600㎡/h High-Speed Printing.
7.Integrated Lead Edge Feeding System for Stable & Accurate Board Transport.
Printer Details
Key Attributes
Application Cases

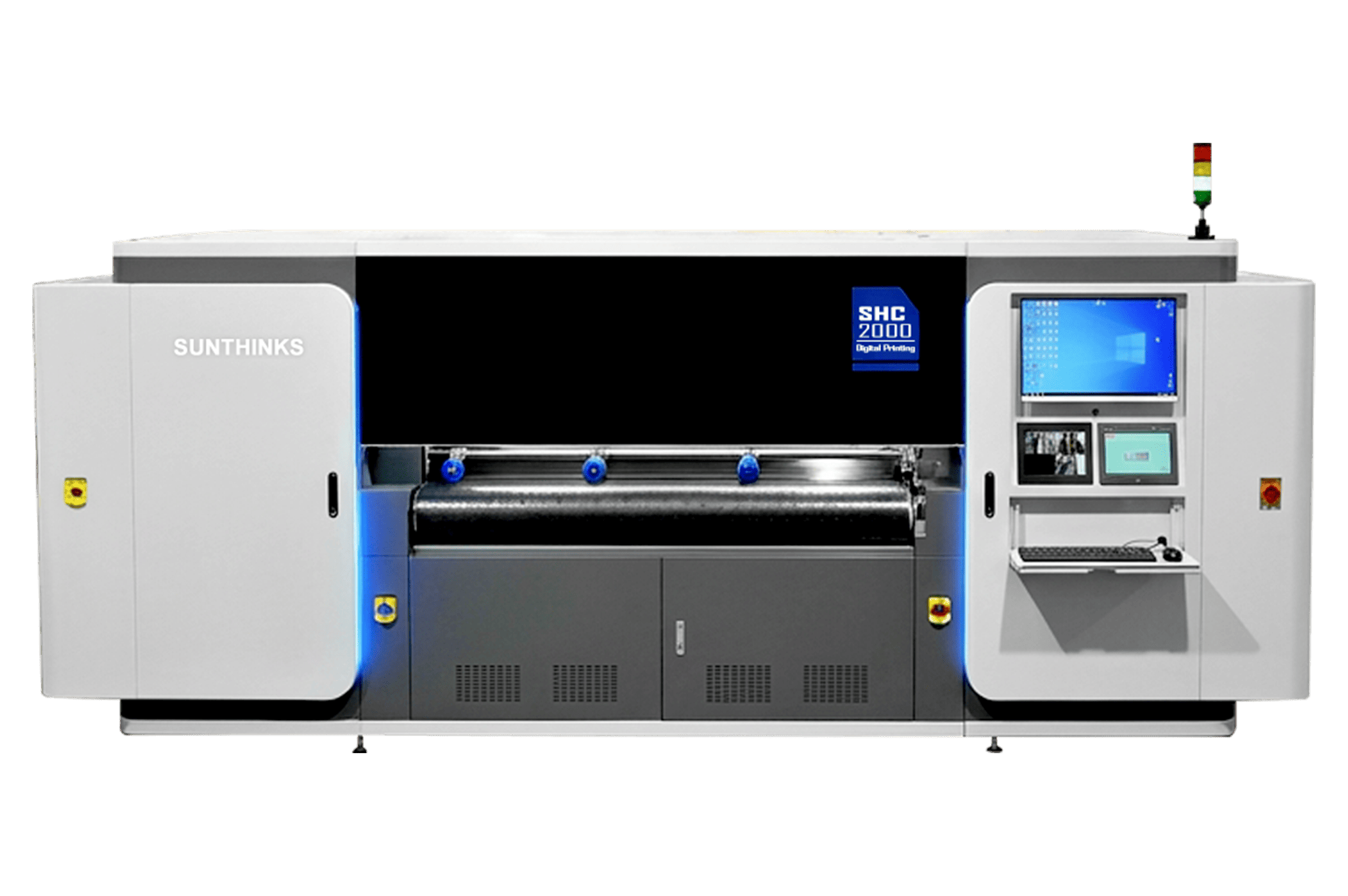

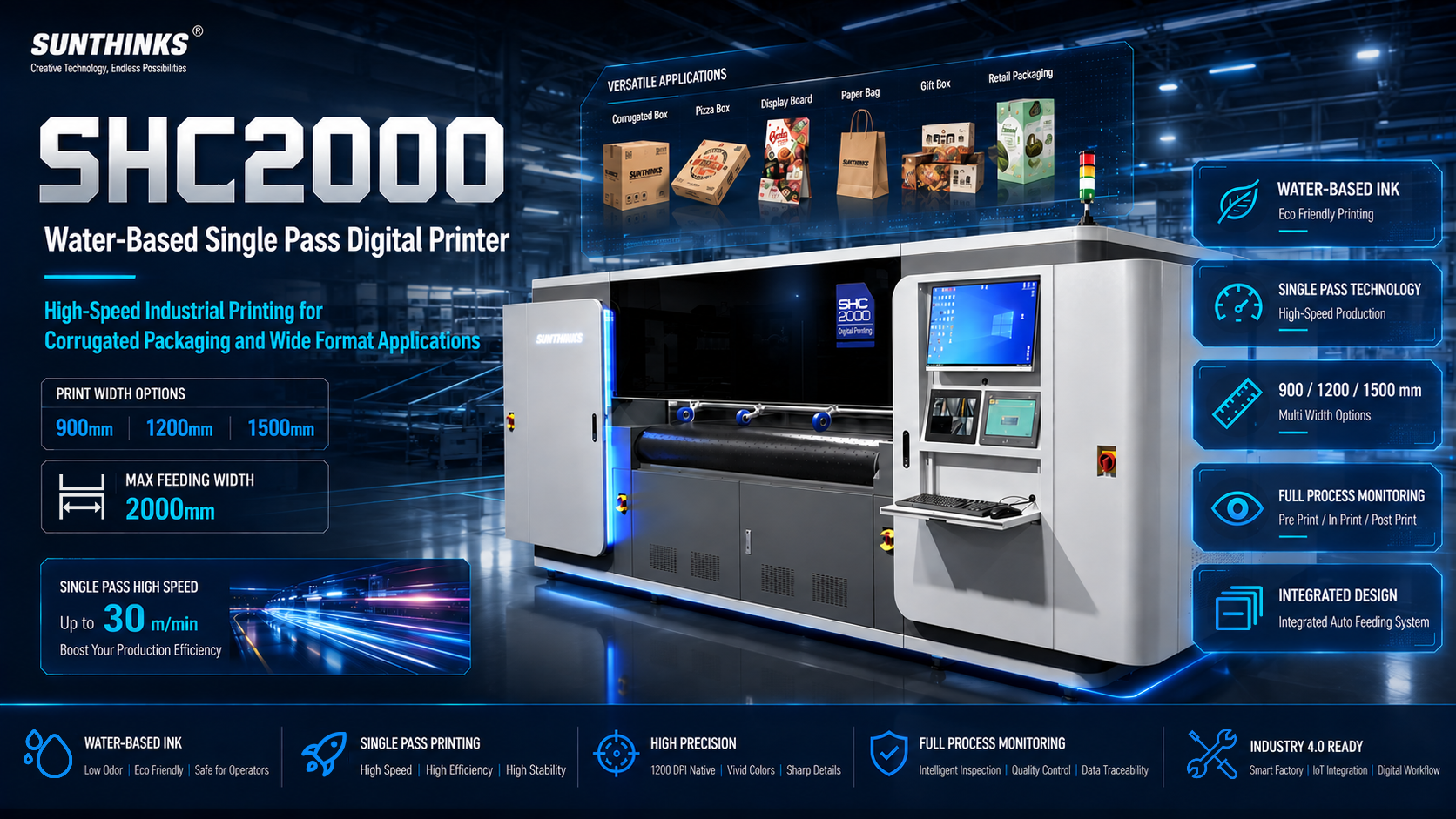

Sunthinks SHC2000 Large Sized Water Based Digital Single Pass Printing Solutions
High-Speed Printing: Achieves up to 1620 to 2700sqm/h with 30m/min speed and 1200dpi resolution.
Single Pass Technology: Industrial-grade efficiency using 3 to 5pcs HP A3 Printheads for continuous production.
Lifetime After-Sales Support: Provides lifetime technical maintenance and spare parts supply beyond warranty.
24/7 Online Service: Remote assistance and video tutorials available around the clock.
Variable Data Capability: Supports variable data and multi-task printing for diverse packaging needs.
Integrated Monitoring System: Real-time visibility throughout production.
Customization Options: Max 900mm and 1500mm printing width,2000mm feeding width.
Versatile Applications: Ideal for large corrugated boards, cartons, boxes, bags, and retail displays.

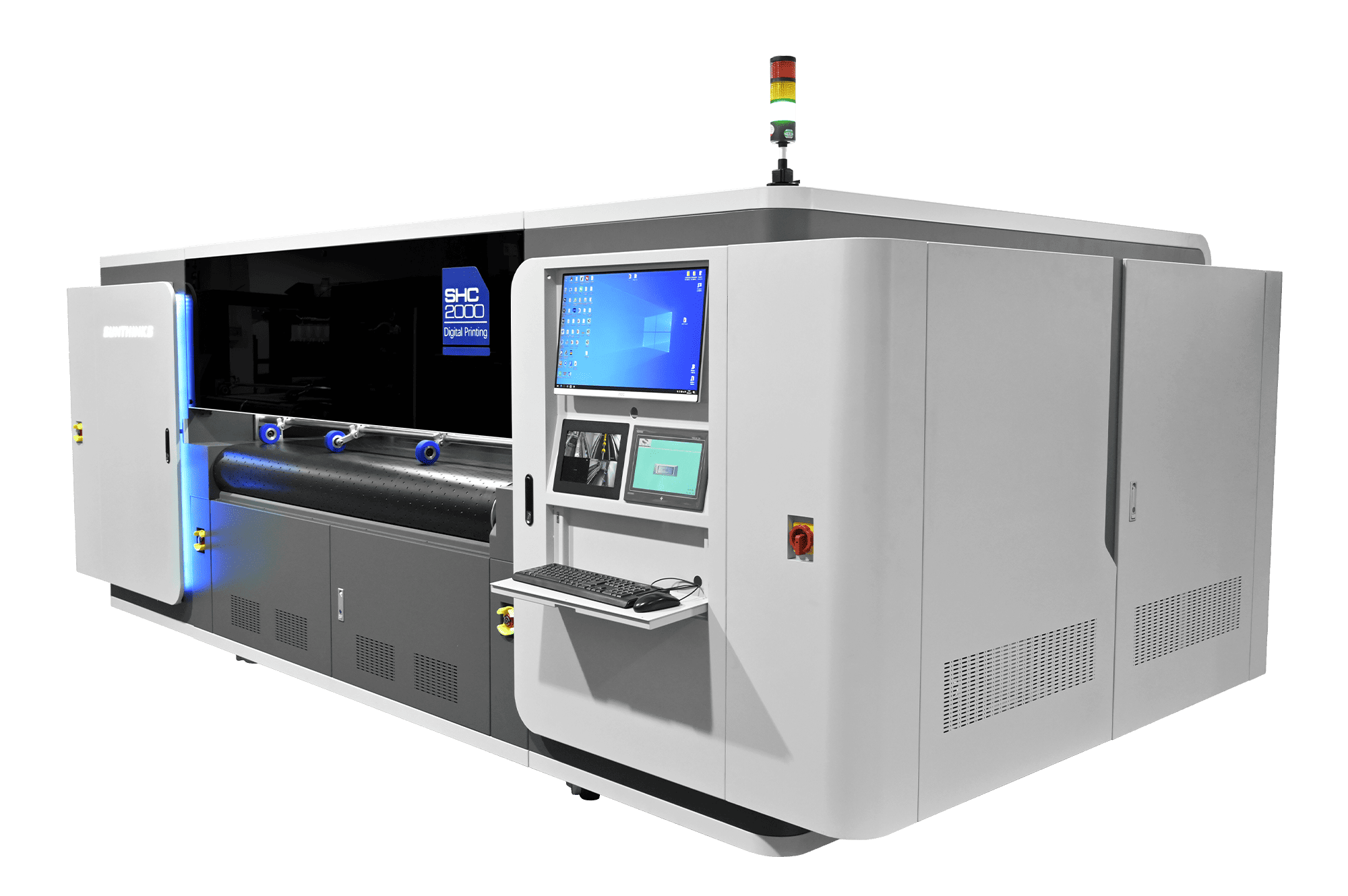

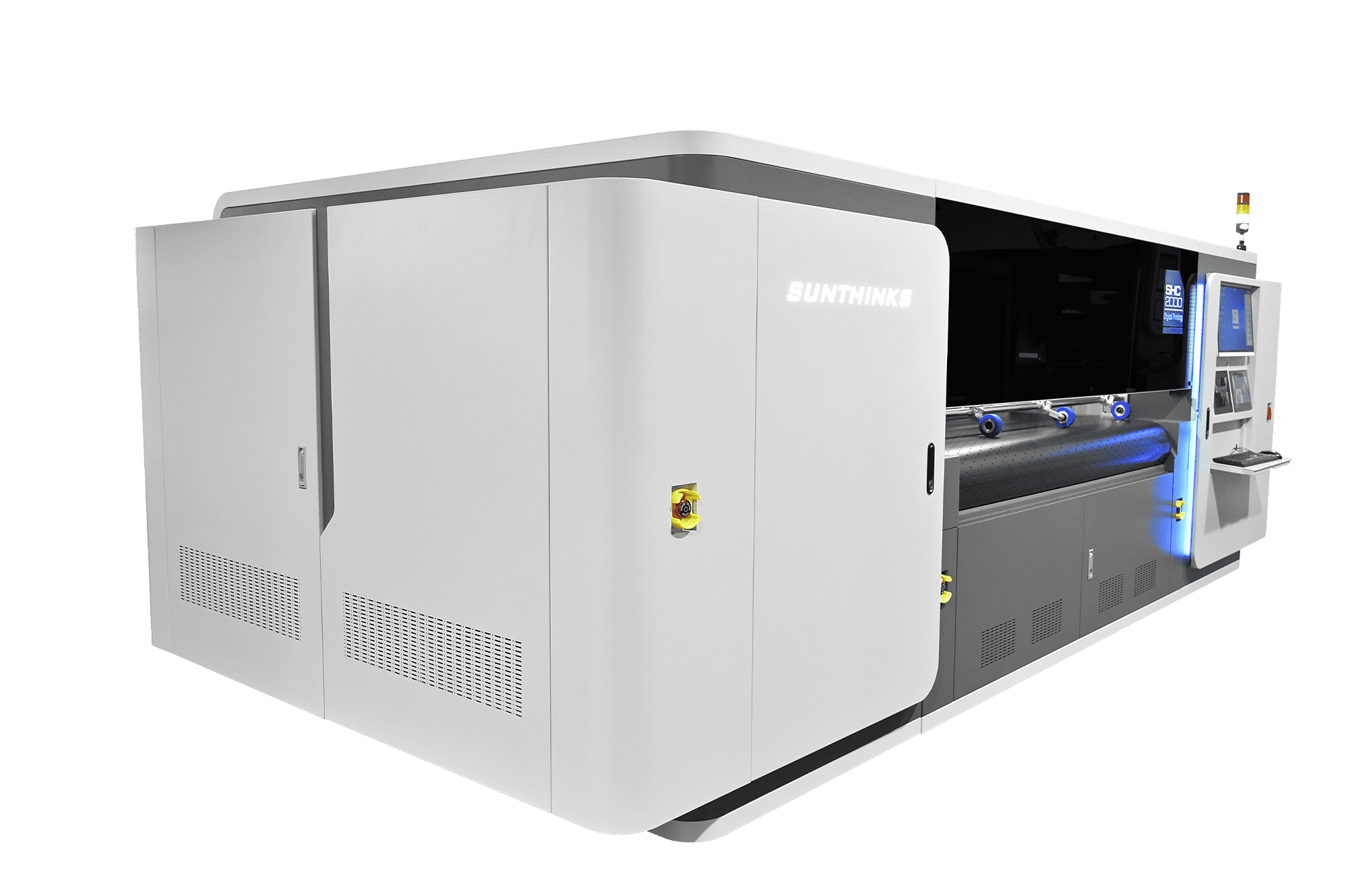

Sunthinks New Industrial-Grade Large-Format Single-Pass Digital Corrugated Packaging Printer (Direct-to-Package Printing)
-
Product NameIntegrated Large Format Digital Single Pass Corrugated Cardboard Printer
-
BrandSunthinks
-
Printer ModelSHC2000
-
Printhead ModelOriginal New OEM A3 Printbar By HP
-
Printhead Quantity3pcs, 4pcs or 5pcs
-
InkDye Ink & Pigment Ink
-
ColorsC / M / Y / K
-
Printing Height80mm
-
Printing Width900mm,1200mm and 1500mm, Support Customization
-
Printing Speed30m/min
-
Power8.0KW
-
Feeding Width2000mm
-
G.W3500KG
-
Product Size4650mm*3800mm*2000mm
-
Resolution1200dpi*300dpi / 1200dpi*600dpi / 1200dpi*1200dpi
-
ApplicationLarge Corrugated Carton/Boxs/Cardboard,Pizza Boxes/ Wood Board And Other Large Paper Packaging
-
Customized ServiceYes
-
Auto FeederOptional
Application Case
Valuable Corrugated Packaging Printing Solutions for Beverage Packaging Boxes, Electrical Appliance Packaging Boxes, Fruit Packaging Boxes, Logistics Packaging Boxes, And More.
